The Science Behind Grout Testing

Grout testing begins with collecting samples from the construction site and preparing test specimens. These specimens undergo a series of tests, including assessments of compressive strength, density, flowability, and bond strength. Each of these tests serves to evaluate whether the grout has the necessary qualities to bear loads, resist deformation, and bond effectively with surrounding materials.

In addition to these core tests, grout may also be subjected to specialized assessments, such as resistance to chemicals, freeze-thaw cycles, and fire. These tests provide insights into the grout’s durability, ensuring that it can maintain its structural integrity even under challenging conditions.

Safety is paramount in any project, and the quality of grout plays a significant role in maintaining that safety. Substandard grout can undermine the stability of a structure, leading to cracks, fractures, or even failures that put both the building and its occupants at risk. Inadequate bonding between grout and surrounding materials can also result in structural instability.

Poor quality grout lacks the necessary strength and durability to effectively support structural loads. This can lead to cracks, fractures, or even failure of the building elements, endangering the occupants and compromising the structure's longevity. Inadequate bond strength between grout and surrounding materials can also result in structural instability and increased vulnerability to external forces such as seismic activity or high winds.

One key way to guarantee safety is through regular grout testing. By implementing a comprehensive testing program, construction professionals can identify potential issues early on and take immediate corrective actions. Regular testing not only ensures the quality and reliability of the grout but also provides peace of mind to all stakeholders, knowing that the structure is built to last.

In the world of construction, even the smallest components must be held to the highest standards. Grout testing is a critical part of this process, helping to ensure that every building is as safe and secure as it can be.

Investing in high-quality grout flow cone test equipment is essential for professionals involved in construction, materials testing, and quality assurance. The grout flow cone test is a critical method used to assess the flow properties of grouts, mortars, muds, and other fluid materials. By ensuring accurate measurements and adherence to industry standards, this equipment helps to guarantee the consistency and reliability of construction materials, ultimately contributing to the structural integrity and safety of a project.

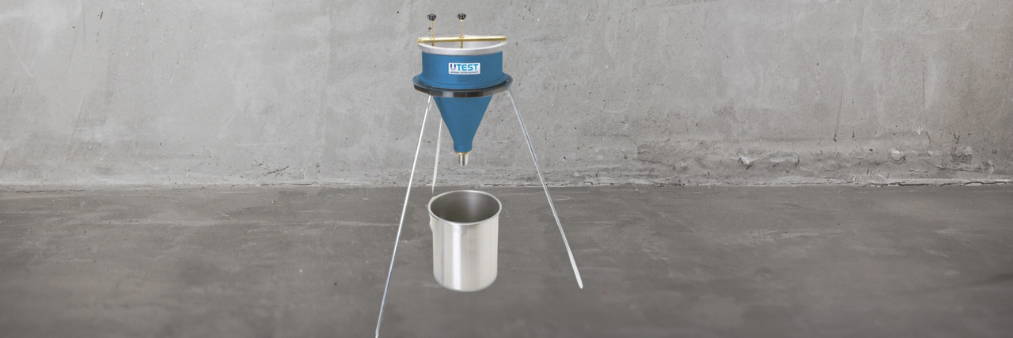

The UTEST Grout Flow Cone Test Sets, are specifically designed to measure the flow properties of various fluid materials. These sets provide an essential tool for evaluating the workability and fluidity of grout, ensuring that it can be properly applied and perform as expected under real-world conditions.

• Versatile Testing Capabilities: The UTEST Grout Flow Cone Test Sets are versatile, allowing for the testing of a wide range of materials, including grouts, mortars, and muds. The UTCM-0730A model, with a 0.75" (19 mm) orifice, is particularly suitable for grouts with larger-sized aggregates, although it does not comply with ASTM C939. For projects requiring ASTM compliance, the UTCM-0720A with a 1/2" (12.7 mm) orifice is the appropriate choice, ensuring that tests are conducted according to recognized standards.

• Complete and Ready-to-Use: The UTEST Flow Cone Apparatus is supplied as a complete set, including a grout flow cone with a point gauge assembly, a sturdy flow cone stand, and a 6-liter stainless steel beaker. This comprehensive package ensures that you have all the necessary components to perform accurate and reliable flow tests without needing to source additional parts.

• Durable and Reliable Construction: The Flow Cone Test Sets are built to last, with high-quality materials and precise manufacturing that ensure durability and accuracy. The equipment’s robust design, with dimensions of 250x400x600 mm and a weight of approximately 14 kg, offers stability during testing, leading to consistent and repeatable results.

The UTEST Grout Flow Cone Test Set with a 1/2" (12.7 mm) orifice complies with ASTM C939. This standard is crucial for ensuring that the flow properties of grout are measured accurately and consistently, providing confidence that the material will perform as expected in the field.

Conducting a grout flow test with UTEST Grout Flow Cone Test Equipment is a straightforward yet precise process that evaluates the flow properties of grout. This process is essential to determine whether the grout has the necessary consistency and fluidity to perform effectively in its intended application. Below is a step-by-step guide to using the UTEST Grout Flow Cone Test Set:

Step 1: Preparation of the Test Setup

• Assemble the Equipment: Begin by assembling the UTEST Grout Flow Cone apparatus. Attach the flow cone to the stand and ensure it is securely fastened. Position the point gauge assembly on the flow cone, which will help measure the grout's consistency and flow rate.

• Prepare the Beaker: Place the 6-liter stainless steel beaker provided with the set beneath the flow cone to catch the grout as it flows through the orifice. Ensure the beaker is clean and free from any residual materials that could affect the test results.

Step 2: Sample Preparation

• Mix the Grout: Prepare the grout sample according to the manufacturer's instructions or project specifications. The consistency of the grout should be uniform, ensuring no lumps or air bubbles are present that could skew the test results.

• Fill the Flow Cone: Pour the mixed grout into the flow cone until it reaches the top. Be careful to avoid spilling or overfilling, as this could impact the accuracy of the test.

Step 3: Conducting the Flow Test

• Release the Grout: Once the flow cone is filled, open the orifice at the bottom of the cone to allow the grout to flow into the beaker. The flow cone set with a 1/2" (12.7 mm) orifice should be used for tests conforming to ASTM C939, while the set with a 0.75" (19 mm) orifice can be used for grouts with larger aggregates.

• Measure Flow Time: As the grout begins to flow, start a stopwatch to measure the time it takes for the grout to empty from the flow cone. This time is crucial in determining the grout’s flow properties, including its fluidity and workability.

Step 4: Recording and Analyzing Results

• Record the Flow Time: Once the grout has completely flowed through the cone and into the beaker, stop the stopwatch and record the flow time. This value is a direct indicator of the grout's flowability.

Compare with Standards: Compare the recorded flow time with the values specified in the relevant standards (such as ASTM C939) or project requirements. If the flow time falls within the acceptable range, the grout is deemed to have adequate flow properties for its intended use.

• Evaluate Additional Properties: If required, assess other properties such as viscosity and consistency using the point gauge assembly. The results from these measurements will help further evaluate the grout’s suitability for the project.

Step 5: Post-Test Procedures

• Clean the Equipment: After completing the test, thoroughly clean the flow cone, stand, and beaker to remove any residual grout. Proper cleaning is essential to maintain the accuracy and longevity of the equipment.

• Document the Results: Finally, document the test results in a report, including the flow time, any observations about the grout’s behaviour during the test, and whether the grout meets the necessary standards.
