Marshall Testing Equipment and Its Importance in Asphalt Performance

Developed by Bruce Marshall in the 1930s, the Marshall test evaluates the performance of asphalt mixtures by measuring how they hold up under pressure. The results help engineers design pavements that not only last but also perform well in the face of heavy traffic and changing weather conditions.

The Marshall Test involves preparing asphalt samples in cylindrical shapes, then applying a controlled load until the specimen fails. Two key measurements come from this process:

• Stability: This is the maximum load the asphalt can endure before it fails. Essentially, it's the strength of the material.

• Flow: This measures the amount of deformation the asphalt undergoes at its breaking point, giving insight into its flexibility.

Together, these values help engineers assess the overall strength and durability of asphalt mixtures making Marshall testing a vital part of pavement design.

To get accurate results, Marshall testing requires specialized equipment. Let's break down the tools you’ll find in an asphalt testing lab:

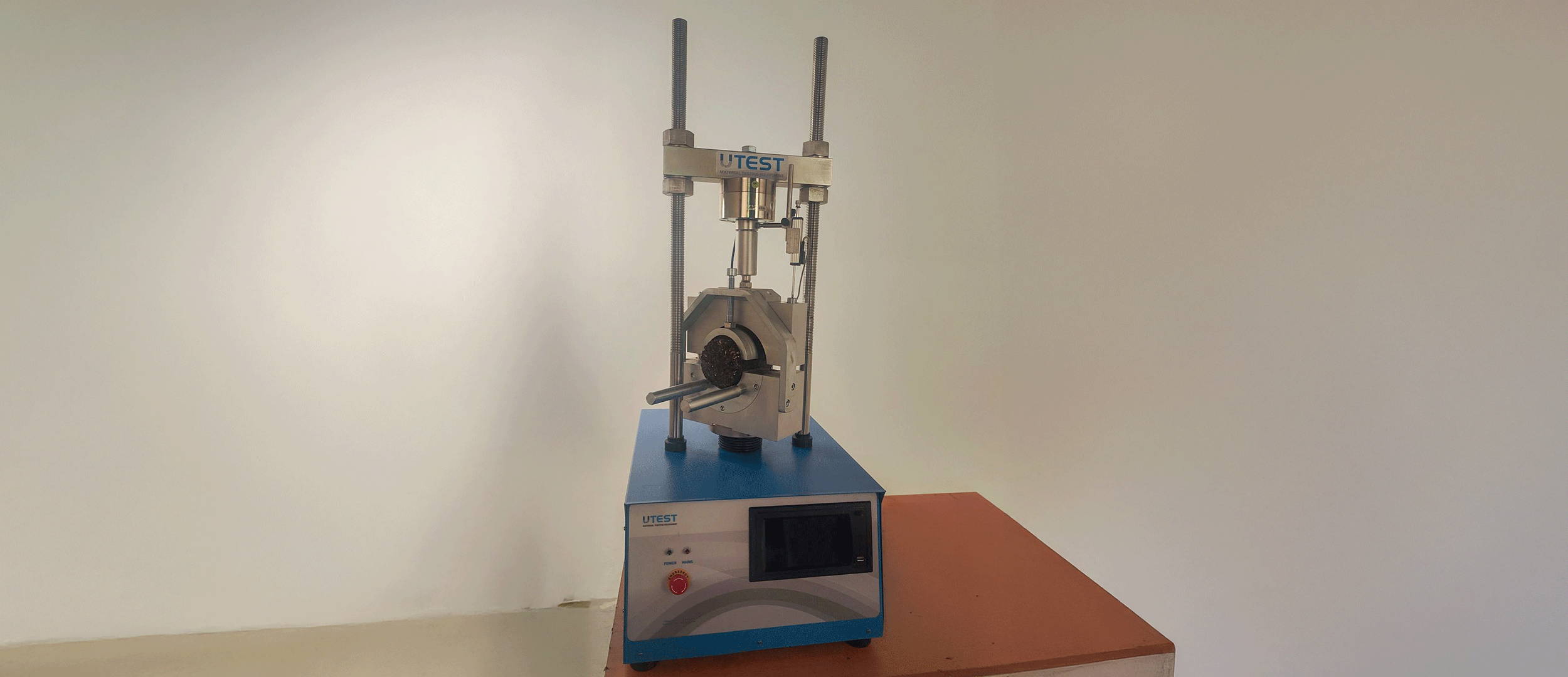

These systems are the heart of the Marshall test. Equipped with advanced load frames, they measure the stability and flow of asphalt specimens with pinpoint precision. One standout example is the UTAS-1056.ACPR Automatic Marshall Stability Test Machine, which boasts a 50 kN capacity and automated systems to measure asphalt mixture strength in compliance with global standards like ASTM and AASHTO.

With a touchscreen control panel and real-time test graphs, this system doesn’t just perform the test, it makes it easy to analyze and interpret the results. And for labs that need to go a step further, additional software allows for in-depth data analysis and reporting.

A good compactor is key to creating accurate asphalt specimens for testing. Whether automatic or manual, these machines ensure consistency in compaction, which is crucial for reliable results. Some of the most commonly used compactors include:

• UTEST Automatic Marshall Compactor: Designed for 4” diameter specimens, this compactor is highly efficient with an LCD control panel that tracks the number of blows and stops automatically once complete.

• Manual Marshall Compactor: If you prefer a more hands-on approach, this simple tool uses a compaction hammer and wooden pedestal to create specimens the old-fashioned way.

• Rotating Automatic Compactors: These compactors, including the Heavy-Duty Rotating Automatic Marshall Compactor, are built for high-volume labs and can compact two molds at once, increasing efficiency without sacrificing accuracy.

Each compactor offers unique features to suit varying laboratory need and industry standards.

Once you’ve compacted your asphalt specimens, it’s time to extract them from the molds. The Hand Operated Hydraulic Specimen Extruder is designed for smooth and easy removal, with the capacity to handle different specimen sizes. It makes sample extraction quick, reducing the risk of damaging the specimens during the process.

Marshall testing isn’t just about crunching numbers, it’s about ensuring that the materials used to build roads are up to the task. By understanding how asphalt behaves under pressure, engineers can design better pavements that last longer, require less maintenance, and perform safely in all conditions. Whether it's the stability of a highway or the flow of a new parking lot, the results from Marshall testing play a crucial role in shaping the world we drive on.
